Duct Temperature Sensor
$6.70 - $12.50
The duct sensor is used to measure the supply and return air temperature in HVAC system. There are several sensor elements to choose from which guarantee compatibility with all popular DDC systems. There is a precision thermistor. The probes are epoxy sealed to prevent moisture from migrating into the probe. Field calibration is not generally required. The standard probe length is 12 inch. Custom probe lengths, wire types and sensor elements are available for large OEM projects. Ask about our plastics & metal manufacturing capabilities for custom housings as well.
Product Highlights:
- Designed for Temperature sensing in an HVAC and Light Industrial Control applications
- Precision interchangeability eliminates the necessity for individual circuit calibration
- Able to produce custom sensors in small volume a standard sensor pricing
Available Options:
Duct Temperature Sensor

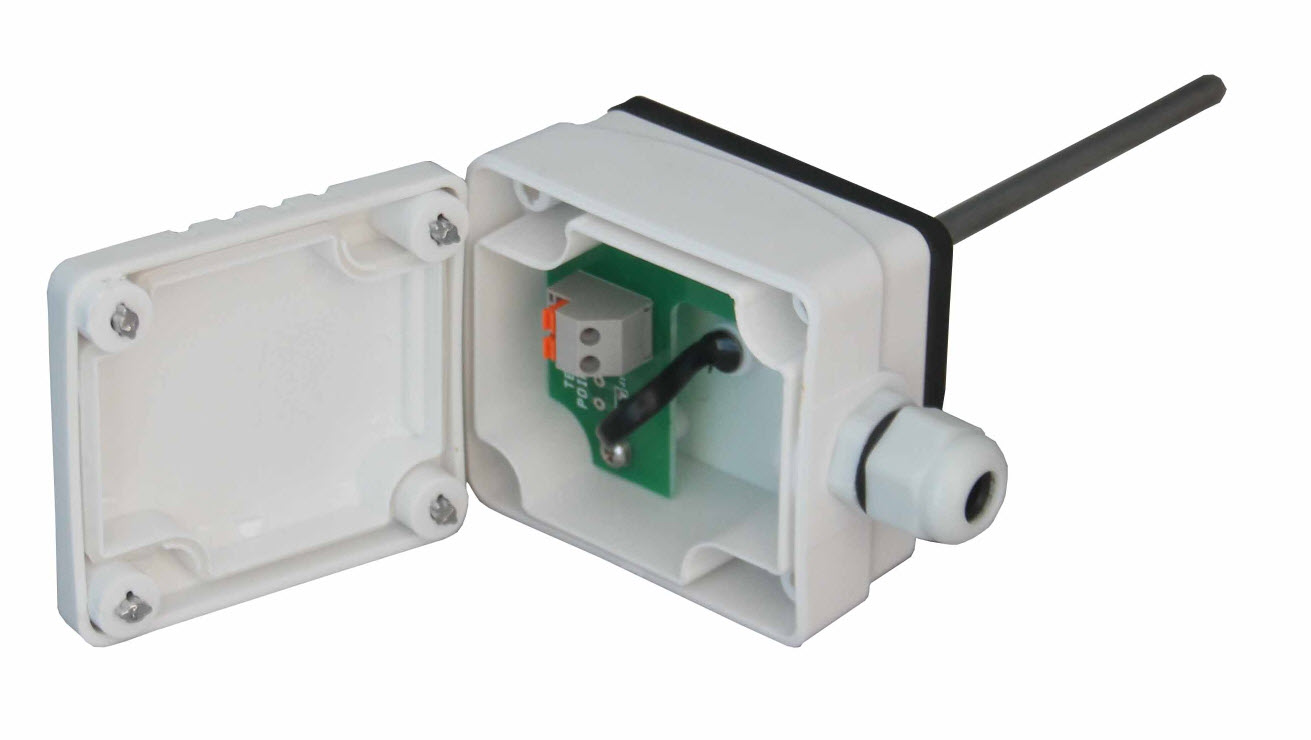

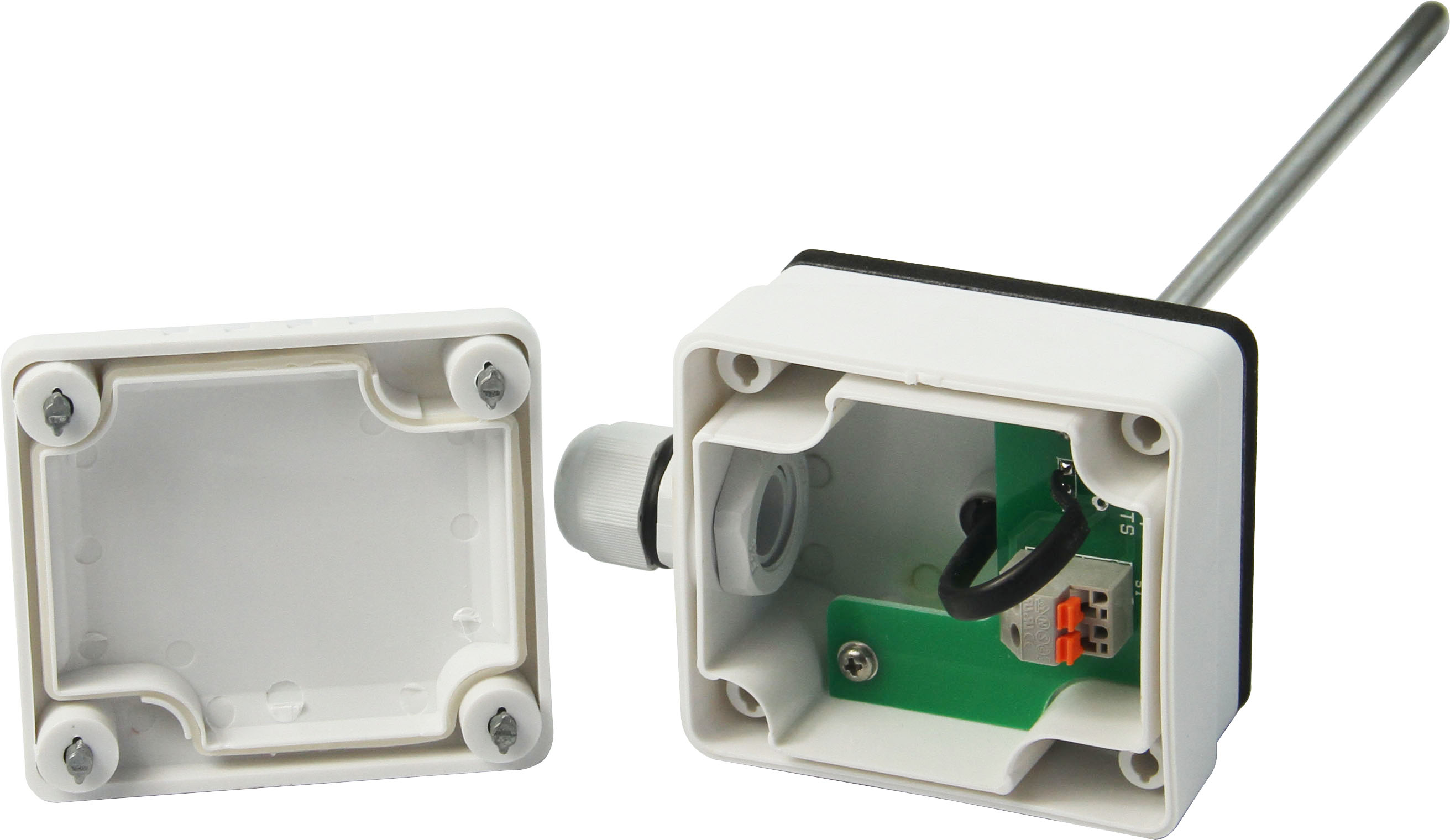

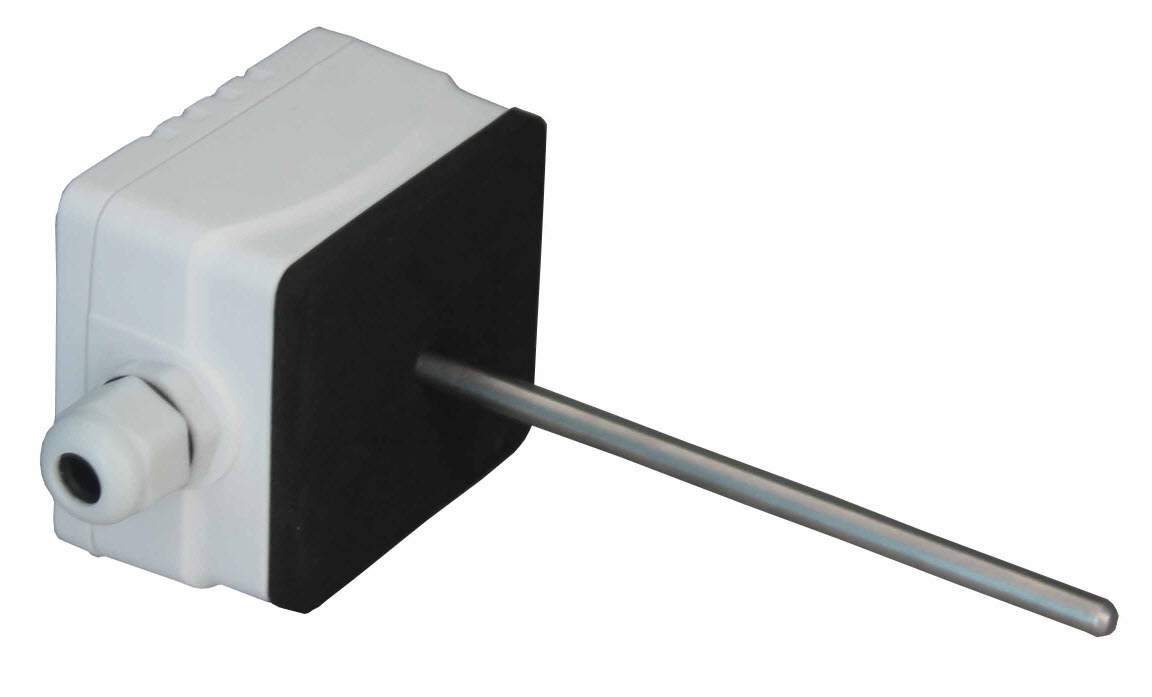

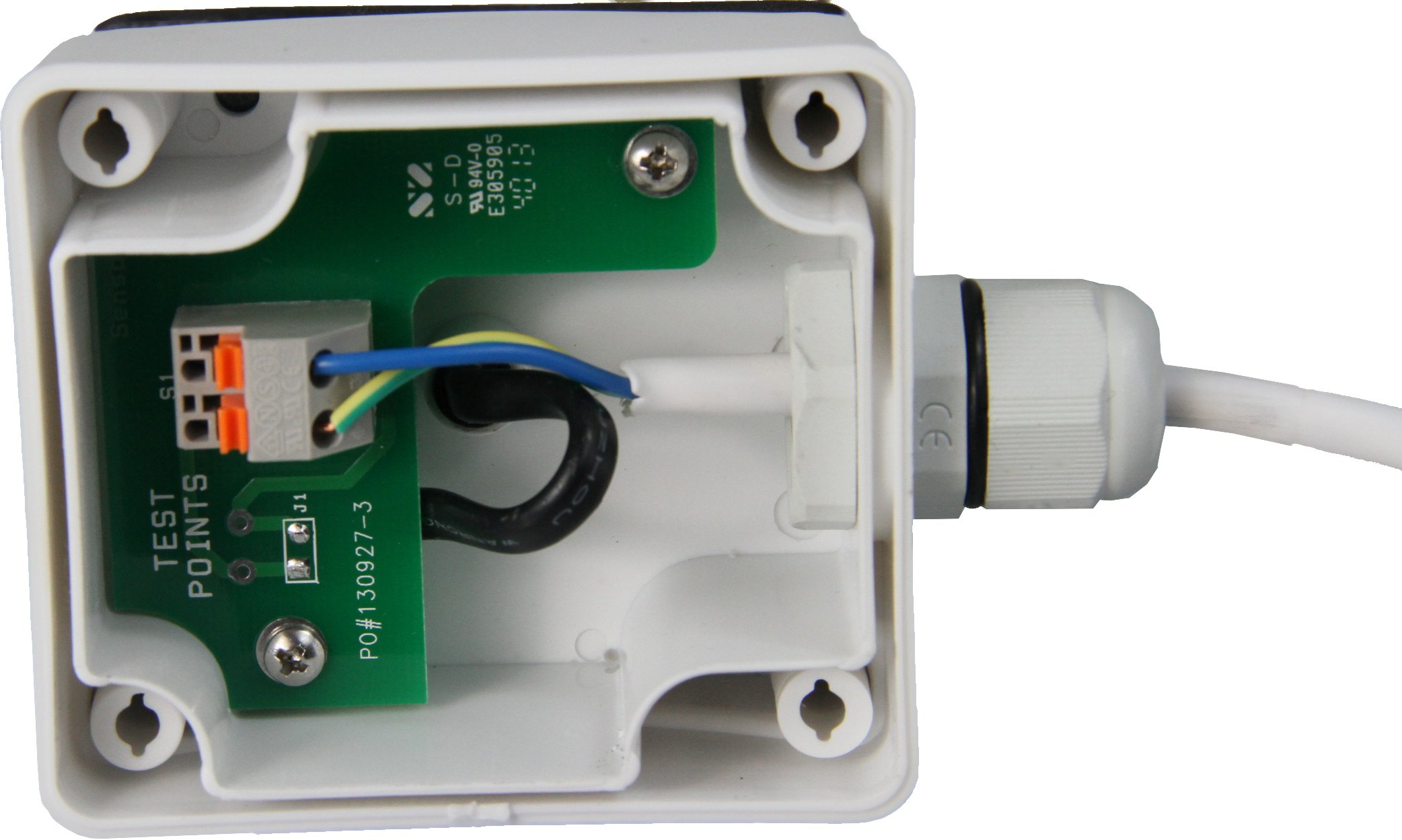

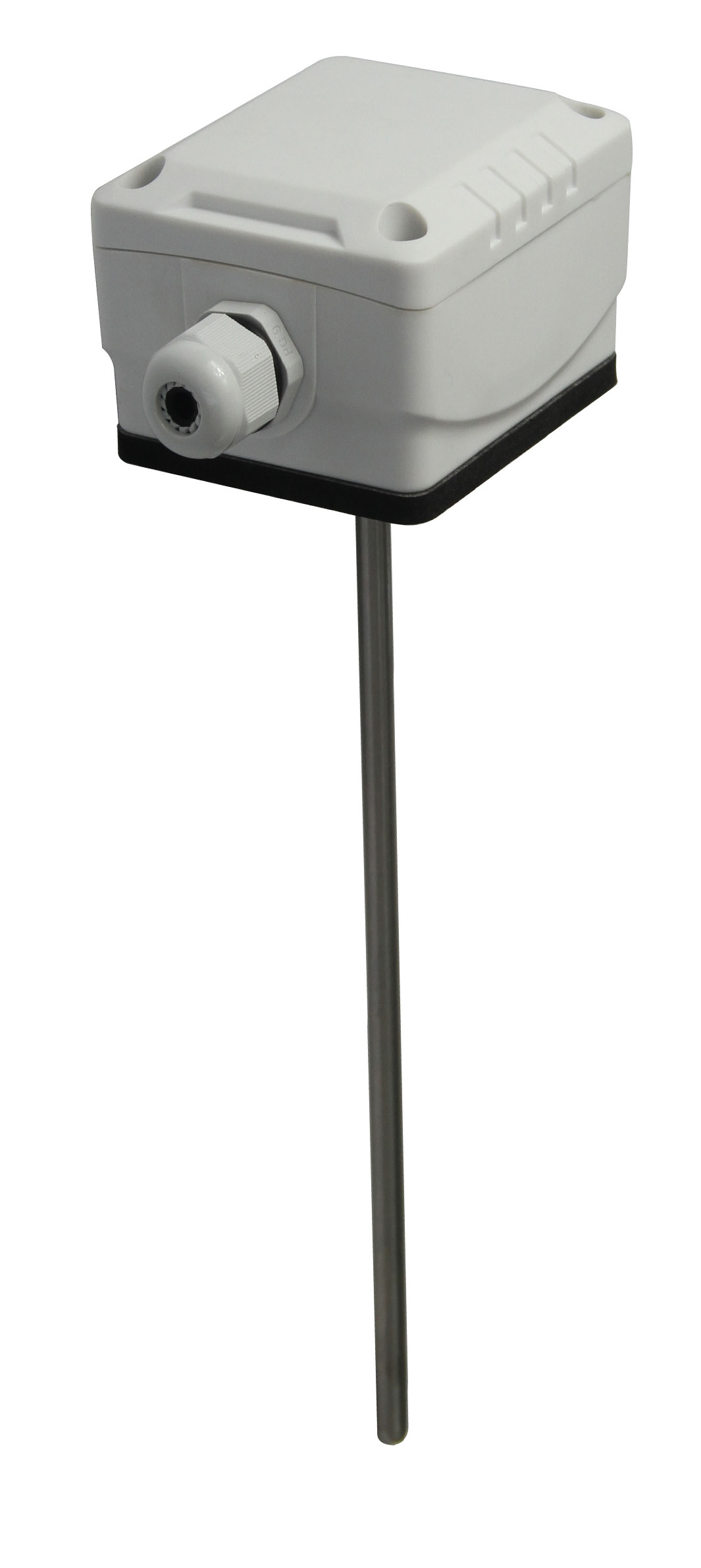

Plastic Water Resistant Box:

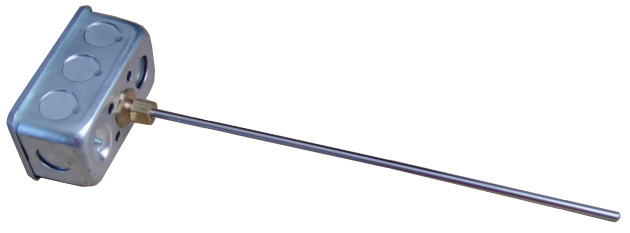

Electrical Box:
Part Number Scheme:
| Weight | 0.15 kg |
|---|---|
| Enclosure | Metal electrical box, Plastic waterproof |
| Probe Length | 12 inch, 2 inch, 4 inch, 6 inch, 8 inch |
| Temperature Curve | 100PT, 10K Type 2, 10K Type 3, 1K PT, 20K |
Related Products
-

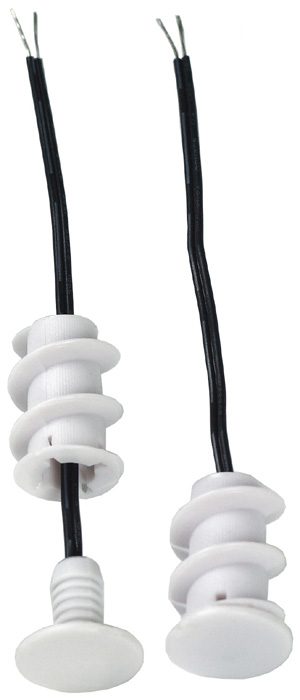

RTS3 Flush Mount Hidden Room Temp
$7.00 - $8.30Availability: In stockOut of stock
The room temperature sensor provide precision room temperature sensing in a discreet button form factor for all popular DDC systems.
-

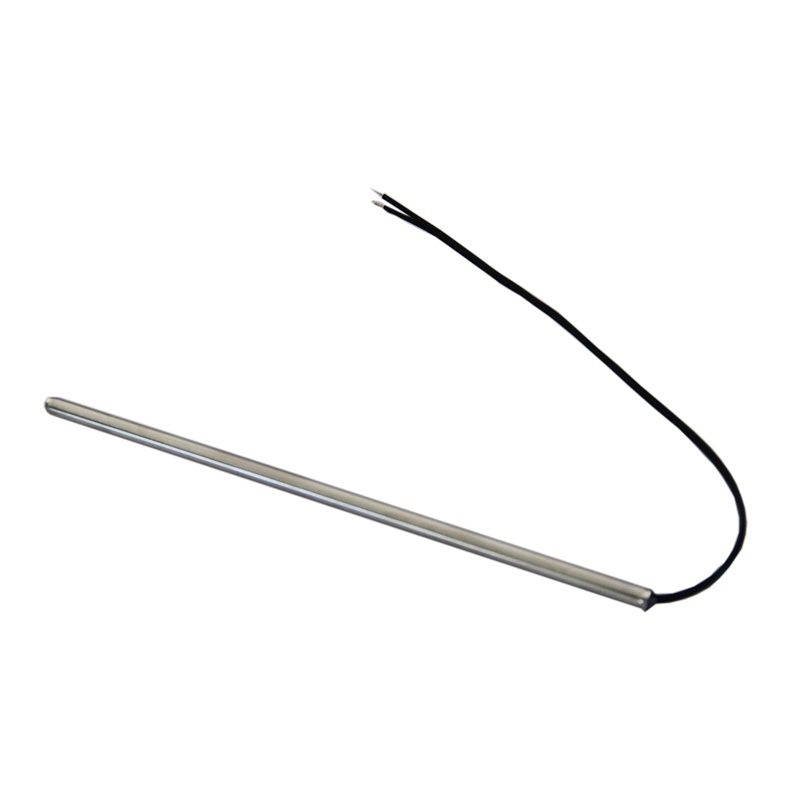

Platinum Temperature Sensor
$25.00 - $30.00Availability: In stockOut of stock
This Probe Temperature Sensor is a 1K Platinum coming standard with an 8″ length Stainless Steel Temperature Sensor.
-

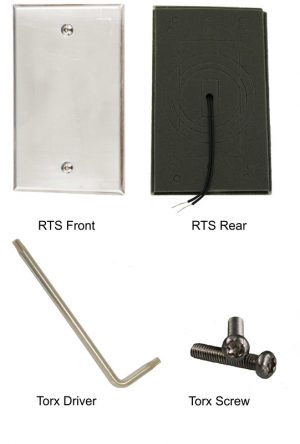

Tamper Proof room temperature sensor
